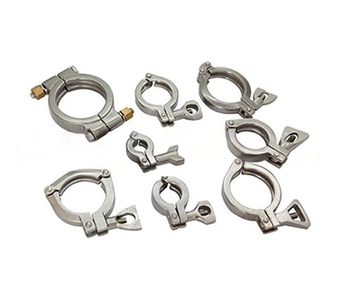

Clamps

Material： 304

Available Parts：

13LAH	Single Pin Heavy Duty Clamp
13LAF	Flat Rivet Clamp
13MHHA	L.B. Double Pin Heavy Duty Clamp
13MHHS	3-PC Segmental Clamp
13MHHM	Double Pin Heavy Duty Clamp
13MHP	High Pressure Clamp
13CS	Double Pin Clamp

13IL	I-Line Clamp
13ILB	Bolted I-Line Clamp
13IU	I-Line Clamp
13IS	I-Line Clamp
13LSC	Single Pin Safety Clamp
13MSC	Double Pin Safety Clamp

Wing Nuts for Clamp

13LAH

Single Pin Heavy Duty Clamp

SIZE	ØA	B
1/2”	28.40	48.00
3/4"	28.40	48.00
1”	53.90	72.70
1-1/2"	53.90	72.70
2"	67.40	86.50
2-1/2"	80.90	99.00
3"	94.40	113.50
3-1/2”	109.40	132.00
4"	122.40	145.00
4-1/2”	133.50	156.00
5”	150.30	173.00
5-9/16”	158.40	188.00
6”	170.10	210.00
6-5/8”	187.00	227.00
8"	221.00	262.00
8-5/8”	238.00	278.00
10”	271.30	322.00
10-3/4”	289.40	340.00
12”	322.50	402.00

SIZE	ØA	B
DN80	109.40	132.00
DN100	133.50	156.00
DN125	158.40	188.00
DN150	187.00	227.00
DN200	238.00	278.00

13LAF

Flat Rivet Clamp

SIZE	ØA	B
3/4"	28.00	59.00
7/8”	37.20	62.19
1-1/2"	53.70	83.00
2"	67.20	95.90
2-1/2"	80.70	108.95
3"	94.20	122.46
3-1/2”	109.20	144.00
4"	122.20	158.00
4-1/2”	133.20	178.00
5”	147.70	188.10
5-1/2”	158.20	208.00
6”	170.20	217.00
6-1/2”	186.20	241.86
8”	221.20	291.00
8-1/2”	236.20	301.15

SIZE	ØA	B
DN10	37.20	62.19
DN15	37.20	62.19
DN20	37.20	62.19
DN25	53.70	83.00
DN40	53.70	83.00
DN50	67.20	95.90
DN65	94.20	122.46
DN80	109.20	144.00
DN100	122.20	158.00
DN125	147.70	188.10
DN125	158.20	208.00
DN150	170.20	217.00
DN150	186.20	241.86
DN200	221.20	291.00
DN200	236.20	301.15

13MHHA

L.B. Double Pin Heavy Duty Clamp

SIZE	ØA	B
1/2"	33.00	60.00
3/4”	33.00	60.00
1”	58.60	85.00
1-1/2"	58.60	85.00
2"	72.00	99.00
2-1/2"	85.60	114.00
3"	99.00	129.00
3-1/2”	109.20	140.62
4"	127.00	157.00
4-1/2”	133.20	167.89
6"	170.00	217.00
8"	221.00	265.00
10"	271.30	319.00
12”	322.50	378.0

SIZE	ØA	B
DN125	158.40	205.00
DN150	187.00	237.00
DN200	238.00	280.00

13MHHS

3-Piece Segmental Clamp

SIZE	ØA	B
1-1/2"	54.00	80.00
2"	67.50	94.00
2-1/2"	80.90	109.00
3"	94.40	126.00
4"	122.40	154.00
12"	323.40	369.00

SIZE	ØA	B
DN25	54.00	80.00
DN40	54.00	80.00
DN50	67.50	94.00
DN65	94.40	126.00
DN100	122.40	154.00

13MHHM

Double Pin Heavy Duty Clamp

SIZE	ØA	B
3/4"	28.20	45.60
7/8"	37.20	60.93
1”	53.70	84.54
1-1/2"	53.70	84.54
2"	67.20	96.49
2-1/2"	80.70	112.51
3"	94.20	129.50
3-1/2"	109.20	144.00
4"	122.20	157.50
4-1/2"	133.20	178.00
6"	170.20	204.00
8"	221.20	260.00

SIZE	ØA	B
DN10	37.20	60.93
DN15	37.20	60.93
DN20	37.20	60.93
DN25	53.70	84.54
DN40	53.70	84.54
DN50	67.20	96.49
DN65	94.20	129.50
DN80	109.20	144.00
DN100	122.20	157.50
DN150	170.20	204.00
DN200	221.20	260.00

13MHP

High Pressure Clamp

SIZE	ØA	B
3/4”	28.20	57.00
1-1/2"	55.00	101.60
2"	68.50	114.30
2-1/2"	81.90	127.00
3"	95.50	139.70
4"	122.20	165.10
4-1/2”	133.20	185.60
6"	170.20	215.80
6-1/2”	186.20	235.00

SIZE	ØA	B
DN25	55.00	101.60
DN40	55.00	101.60
DN50	68.50	114.30
DN65	95.50	139.70
DN100	122.20	165.10
DN150	170.20	215.80
DN150	186.20	235.00

13CS

Double Pin Clamp

Nut for Size DN115 and below

Nut for Size DN125 and above

SIZE	ØA	ØB
1/2"	20.58	28.34
3/4”	20.58	28.34
1-1/2"	41.02	53.52
2"	54.54	67.04
2-1/2"	68.02	80.52
3"	81.52	94.02
4”	109.54	122.04
6"	157.60	175.10
8"	207.04	225.90

SIZE	ØA	ØB
DN10	27.20	37.00
DN20	27.20	37.00
DN25	44.50	54.50
DN40	44.50	54.50
DN50	57.00	68.00
DN65	84.00	95.00
DN80	99.00	110.00
DN100	112.00	123.00
DN115	123.00	134.00
DN125	144.00	159.00
DN150	172.00	187.00
DN200	222.50	237.50
DN250	257.00	272.00
DN300	308.00	323.00

13IL

I-Line Clamp

SIZE	ØA	B
1-1/2"	53.40	83.80
2"	72.20	111.00
2-1/2"	88.10	121.40
3"	102.40	136.10
4"	127.80	162.00
6"	195.30	242.10

13ILB

Bolted I-Line Clamp

Size: 1-1/2” and 4”

Size: 6” and 8”

SIZE	ØA	B
1-1/2"	26.92	90.42
2"	35.81	117.35
2-1/2"	44.45	142.75
3"	51.56	168.15
4"	63.50	197.36
6"	195.15	285.75
8"	246.06	336.55

13IU

I-Line Clamp

SIZE	ØA	B
1"	55.2	89.0
1-1/2”	55.2	89.0
2"	71.7	102.8
2-1/2"	88.6	124.7
3"	99.4	145.0
4"	128.3	172.2
6”	195.0	230.5

13IS

I-Line Clamp

SIZE	ØA	B
1"	55.2	89.0
1-1/2”	55.2	89.0
2"	71.7	102.8
2-1/2"	88.6	124.7
3"	99.4	145.0
4"	128.3	172.2
6”	195.0	230.5

13LSC

Single Pin Safety Clamp

SIZE	ØA	ØB
3/4”	28.20	56.00
1-1/2”	53.70	84.50
2”	67.20	100.00
2-1/2”	80.70	113.70
3”	94.20	127.00
4”	122.20	155.00

SIZE	ØA	ØB
DN25	53.70	84.50
DN40	53.70	84.50
DN50	67.20	100.00
DN65	94.20	127.00
DN100	122.20	155.00

13MSC

Double Pin Safety Clamp

SIZE	ØA	ØB
1/2”	21.58	28.34
3/4”	21.58	28.34
1”	41.02	53.52
1-1/2”	41.02	53.52
2”	54.54	67.04
2-1/2”	68.02	80.52
3”	81.52	94.02
4”	109.54	122.04
6”	157.60	175.10
8”	207.40	225.90

SIZE	ØA	ØB
DN10	27.20	37.00
DN20	27.20	37.00
DN25	44.50	54.50
DN40	44.50	54.50
DN50	57.00	68.00
DN65	84.00	95.00
DN80	99.00	110.00
DN100	112.00	123.00
DN115	123.00	134.00
DN125	144.00	159.00
DN150	172.00	187.00
DN200	222.50	237.50
DN250	257.00	272.00
DN300	308.00	323.00

Wing Nuts for Clamp

13MHH-10
13MHH-11
13MHH-12
13MHH-13
13MHH-14
13MHH-15
13MHH-16
13MHH-17
13MHH-18
13SP-2
