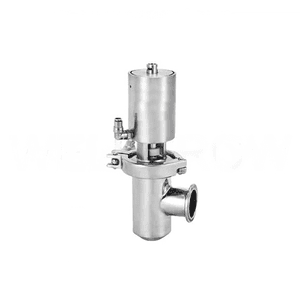

Filling Valve
Filling Valve
Features：
- Max. product pressure (depending on valve specifications)：1000 kpa ( 10 bar )
- Min. product pressure：Full vacuum
- Temperature：-10℃ to 140℃ ( EPDM )
- Air pressure：5 bar to 7 bar
- Air connections：R1/8" BSP female thread
Materials：
- Product wetted steel parts：AISI 316L
- Other steel parts：AISI 304
- Plug stem：AISI 316L with hard chrome planted stem surface
- Product wetted seals：EPDM rubber
- Other seals：NBR
- Finish：Semi bright
Opening/Closing Time will be effected by the following：
- The air supply (air pressure)
- The length and dimensions of the air hose
- Number of valves connected to same air hose
- Use of single solenoid valve for serial connected air actuator functions
- Product pressure
-
FVFilling Valve
SIZE ØA ØB ØC ØD ØE L 1”x1” 22.1 50.5 22.1 55 60 165 1”x1-1/2” 34.8 50.5 22.1 55 60 165 1”x2” 47.5 64.0 22.1 66 85 292 1-1/2”x1-1/2” 34.8 50.5 34.8 66 60 165 1-1/2”x2” 47.5 64.0 34.8 66 85 292
