2 Piece Ball Valves
2 Piece Ball Valves
Features：
- Floating ball design for positive sealing.
- Maximum Working Pressure: 1000PSI at 20°C to 250°C with PTFE seat.
- End connection: tube end.
- Blow-out proof bottom loaded stem.
- 100% Factory tested.
- The temperature rating of O-ring seal:
Buna-N: -30°F to 250°F (-34°C to 121°C) - Viton (Fluorocarbon): -15°F to 400°F (-26°C to 204°C)
The other material is available upon request.
Available Parts：

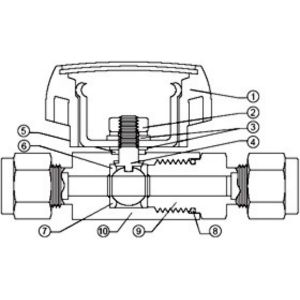

Material List
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | HANDLE | BLACK PHENOLIC / ZINC ALLOY |
| 2 | LOCK NUT | SS304 |
| 3 | WASHER | SS304 |
| 4 | STEM | SS316 / SS304 |
| 5 | GLAND PACKING | PTFE / OTHER MATERIAL |
| 6 | BALL | SS316 / SS304 |
| 7 | SEAT | PTFE / OTHER MATERIAL |
| 8 | BODY SEAL | BUNA-N / VITON |
| 9 | END CAP | SS316 / SS304 |
| 10 | BODY | SS316 / SS304 |
- 2PC-BV2PC Ball Valve 1000PSI
SIZE ORIFICE A B C D INLET / OUTLET MM INCH 1/4" OD 5 0.197 74.3 41 33 8.5 3/8" OD 5 0.197 78.3 41 35 9.5 1/2" OD 10 0.394 91.0 50 41 13.5
